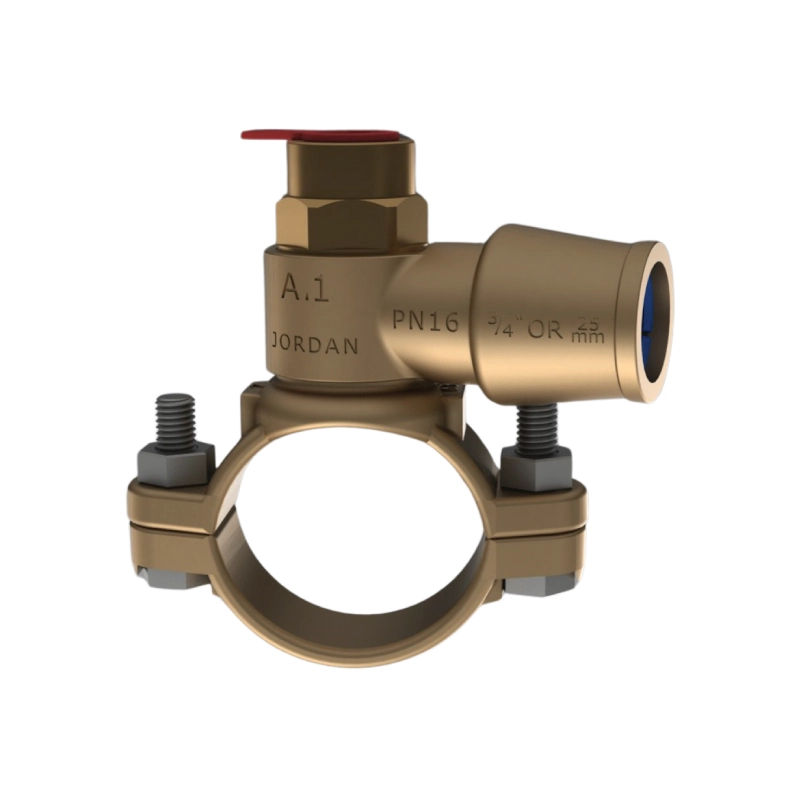

SELF TAPPING FERRULE STRAP

Self Tapping Ferrule Straps for PE, PVC and fibre
cement mains pipes incorporate an integral ferrule
with a self-contained cutter, eliminating the need for
drilling machines. Straps are made from gunmetal
or plastic making the product durable and corrosion
resistant. The strap also uses a specially designed
cutter, which tests show greatly reduces the risk of
bursting a PVC main or creating a swarf blockage
whilst cutting.
APPLICATIONS
House connection
USES
L MAKING SERVICE CONNECTIONS TO MAINS PIPES
Self tapping ferrule straps allow service connections to mains pipes made from PE, PVC or Asbestos Cement.
They fit dimensions from 32mm – 315mm.
They have an integral cutter eliminating the need for drilling machines.
New plastic self-tapping ferrule strap for PE and PVC pipes 125-63mm. Lightweight for easy installation and lead free to protect the environment.

FUNCTIONS
Allows the connection of a service pipe to a mains pipe, dry or underpressure.
ADVANTAGES
L Quick and simple to install
Quick, permanent, leak free connection provided by a tried and tested design.
L Extensive range
A range has been developed which enables the user to make connections to almost any type of mains and service pipe, either underpressure or dry.
L Robust and long lasting
Years of service in even the most aggressive soil and water conditions.
L Reliable and leak free
Specifically designed to operate at pressures up to 16 bar (240 psi) subject to the ratings of the pipe.
L No special equipment needed
The fitting has an integral cutter and requires only a spanner and standard ferrule key to install and carry out the drilling operation.
USES
MAKING SERVICE CONNECTIONS TO MAINS PIPES
Self tapping ferrule straps allow service connections to mains pipes made from PE, PVC or Asbestos Cement.
They fit dimensions from 32mm – 315mm.
They have an integral cutter eliminating the need for drilling machines.
New plastic self-tapping ferrule strap for PE and PVC pipes 125-63mm. Lightweight for easy installation and lead free to protect the environment.
