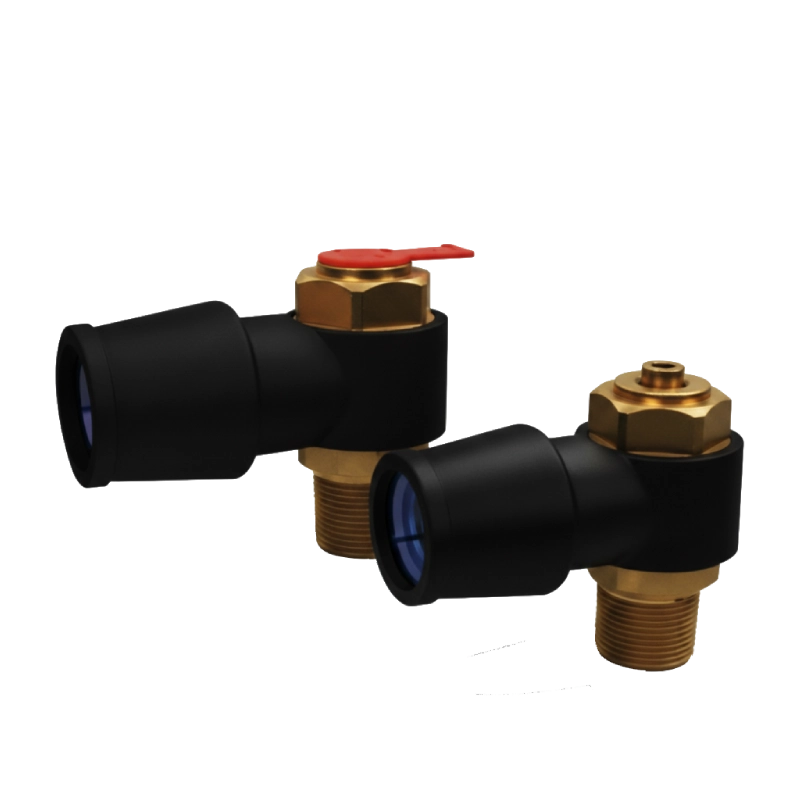

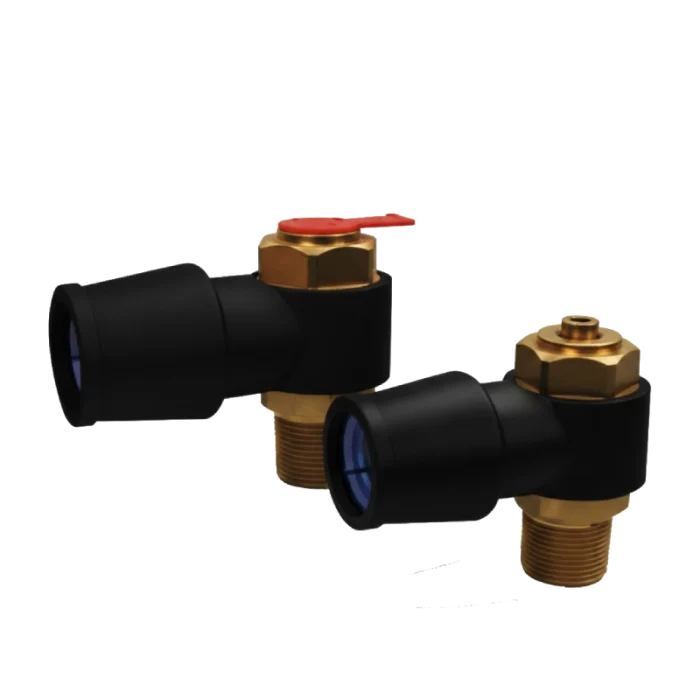

Standard Pattern & Screwdown Pattern Swivel Ferrules Push-fit Outlet – Plastic Banjo

The A.1 JORDAN® Swivel Ferrule provides a quick, permanent, leak
free service connection, consisting of a stem with an inner plug for
valve isolation and a 360° swivel outlet at 90° to the stem.
The ferrule outlet provides a direct connection to the service line from
1/2″ to 2″ nominal bore diameter (20mm to 63mm PE pipe OD) via an
integral joint in the ferrule banjo, so no adaptor is needed.
The ferrule will provide service connections dry or under pressure
directly into cast iron, ductile iron and steel mains. Asbestos cement,
PVC, PE and GRP mains can also be tapped via the Flat Boss Strap.
Ferrules should not be inserted directly into PVC or AC mains. The
wall of these pipes is not strong enough to hold the stem.
The manufacturers of ductile iron and steel main pipe should be consult-
ed for their specific recommendations regarding tapping directly into
these pipe materials. Typically it is advised that the nominal diameter of
the tapping should not exceed 1/4 of the nominal diameter of the main
for direct ferrule insertion without a strap or 1/3 of the nominal diame-
ter when the strap is used. For tappings larger than this a Tapping Tee
should be used.
• Quick and simple to install
Quick, permanent, leak free connection provided by a tried and tested
design.
• Extensive range
The range has been developed to enable the user in making
connections to almost any type of mains and service pipe, either
under pressure or dry.
• Robust and long lasting
Ferrules provide years of service in even the most aggressive soil
conditions.
• Reliable and leak free
Specifically designed to operate at pressures up to 20 bar subject to
the ratings of pipe and strap if used.
